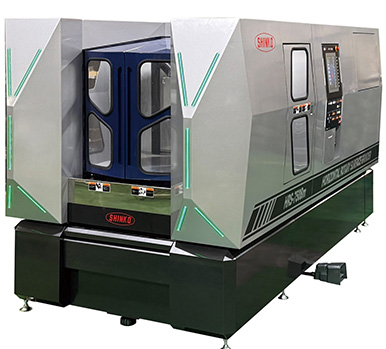

Permanent electromagnetic chuck table by the standard specification.
The permanent electromagnetic chucking table doesn't give the material the thermal effect.
The ultraprecision machining of the submicron can surely be done as a result.
It is standard equipment as for a built-in motor of the domestic production goods.
The motor that agrees with 'Law Concerning Rational Use of Energy' is adopted. Power consumption is suppressed.
An auto balancer can be installed in the option.
Wheel dresser
It is standard equipment as for two kinds for the surface grinding and for the tilt grinding. (automatic switch type)
It is standard equipment as for the inequitable velocity sending.
The amount of grinding is irrelevantly kept constant at the position of the whetstone.
Large-scale work can be processed.
The correspondence work size can correspond to φ800mm/□530mm.
Two axis control simultaneously (X・Z axis)
Taper shape processing. It is also possible that it is construction of the whetstone.
It is standard equipment as for the figure conversation processing program.
The processing with steps is also easy.
| Mechanical specification (Standard specification) | ||
|---|---|---|
| Correspondence work maximum size | H300mm xφ800mm/□530mm MAX300kg | |
| Diameter of table | φ750mm | |
| The tilt corner is changeable. | ±10°（Manual） | |
| Axis stroke ZX axis | Z 350mm／X 450mm | |
| Size of whetstone | φ355mm×Insideφ127mm Width38～Max50mm | |
| Amount of minimum incision | 0.001mm | |
| Wheel spindle incision speed | 0.001mm/min | |
| Electric motor | Wheel spindle vertical motion | Servo motor drive |
| Wheel spindle | Built-in motor drive7.5Kw/700～1500min-1 | |
| Table | Servo motor drive/20～150min-1 | |
| X axis | Servo motor drive | |
| Grinding lubricant | Water soluble grinding lubricant | |
| Automatic grinding program system | Standard equipment | |
| Figure conversation processing program | Standard equipment | |
| Processing control | Inequitable velocity sending/Standard equipment | |
| In-flight lighting | Standard equipment／LED | |
| Automatic concentration oiler | Standard equipment | |
| Wheel dresser | Standard equipment | |
| Balance whetstone flange | Standard equipment | |
| Power supply（Main Machine） | △AC200V 34.6kVA 50/60Hz | |
| Size of machine (main body) | W1700xD3260xH1900 | |
| Weight (Only the main body). | 6400kg | |
| Options |
|---|
| Standard grinding liquid tank (400L or less) |
| Inverter motor drive system/Wheel spindle |
| IOT/Wi-Fi Communication function |
| Main grinding lubricant tank |
| Grinding lubricant tank by stainless steel |
| Magnetic separator |
| Manual sending type feeding paper filter |
| Grinding lubricant cooling system |
| Vacuum adsorption unit |
| Centrifugal separator |
| Automatic measurement grinding device |
| Air gan unit |
| Water gun unit |
| Signal tower |
| Auto balancer |
| Left side slide type cover |

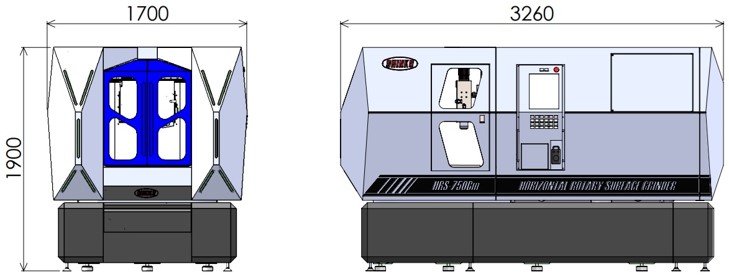

| ■Sketch drawing（Main body unit） |
|---|
 |
